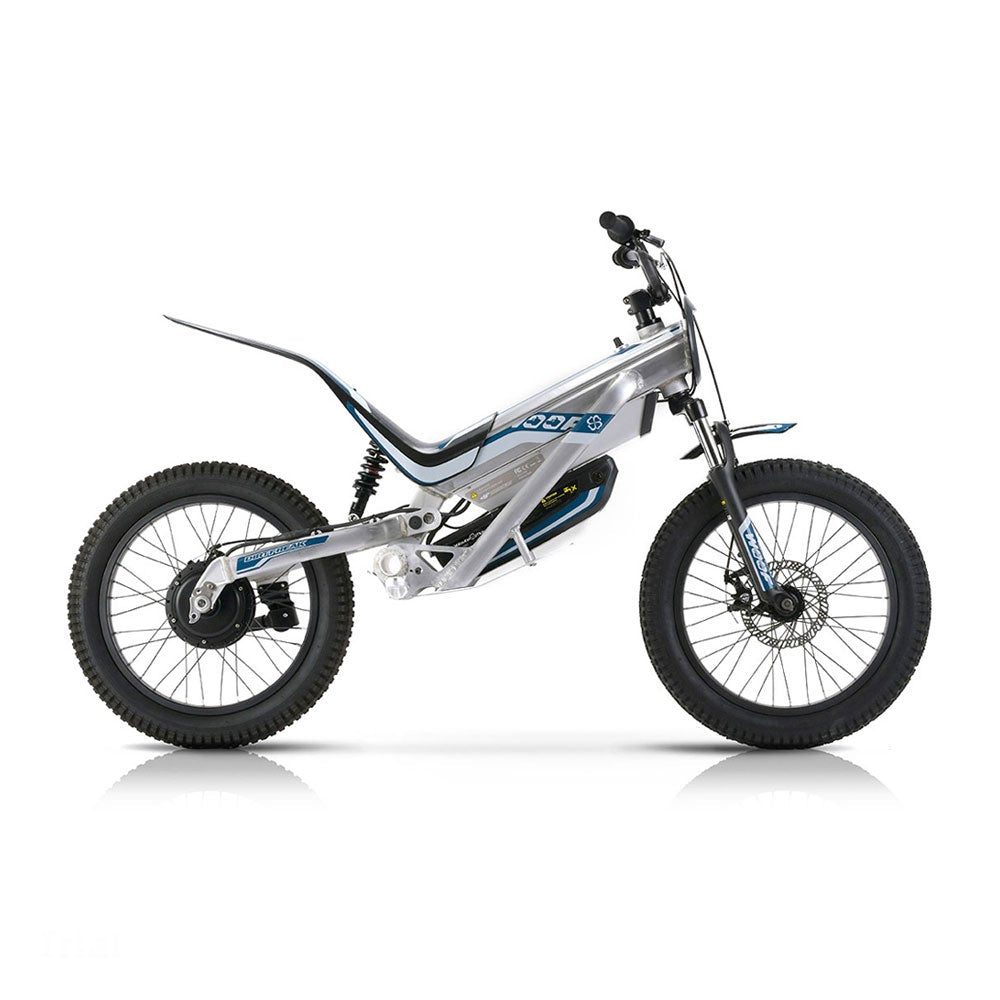

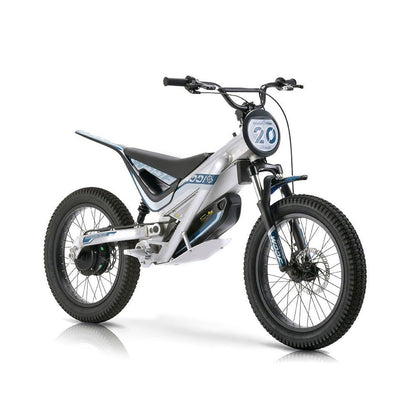

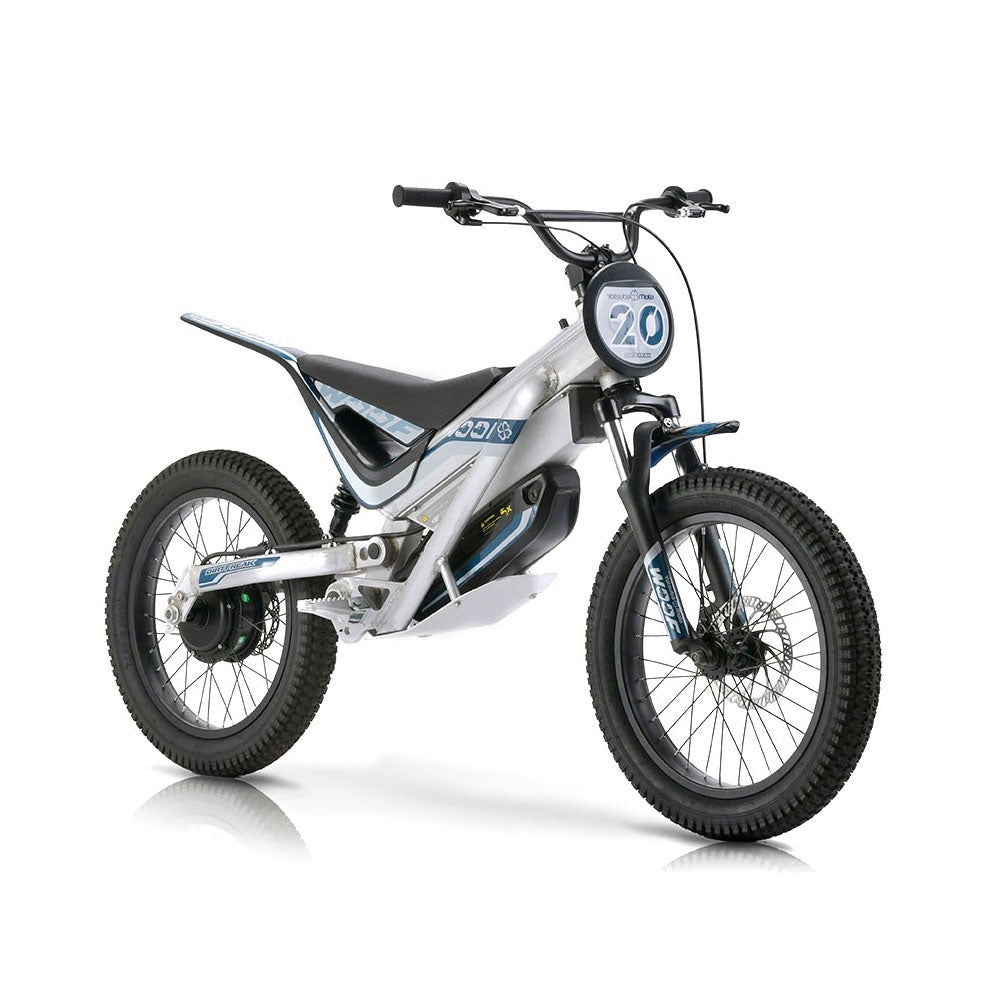

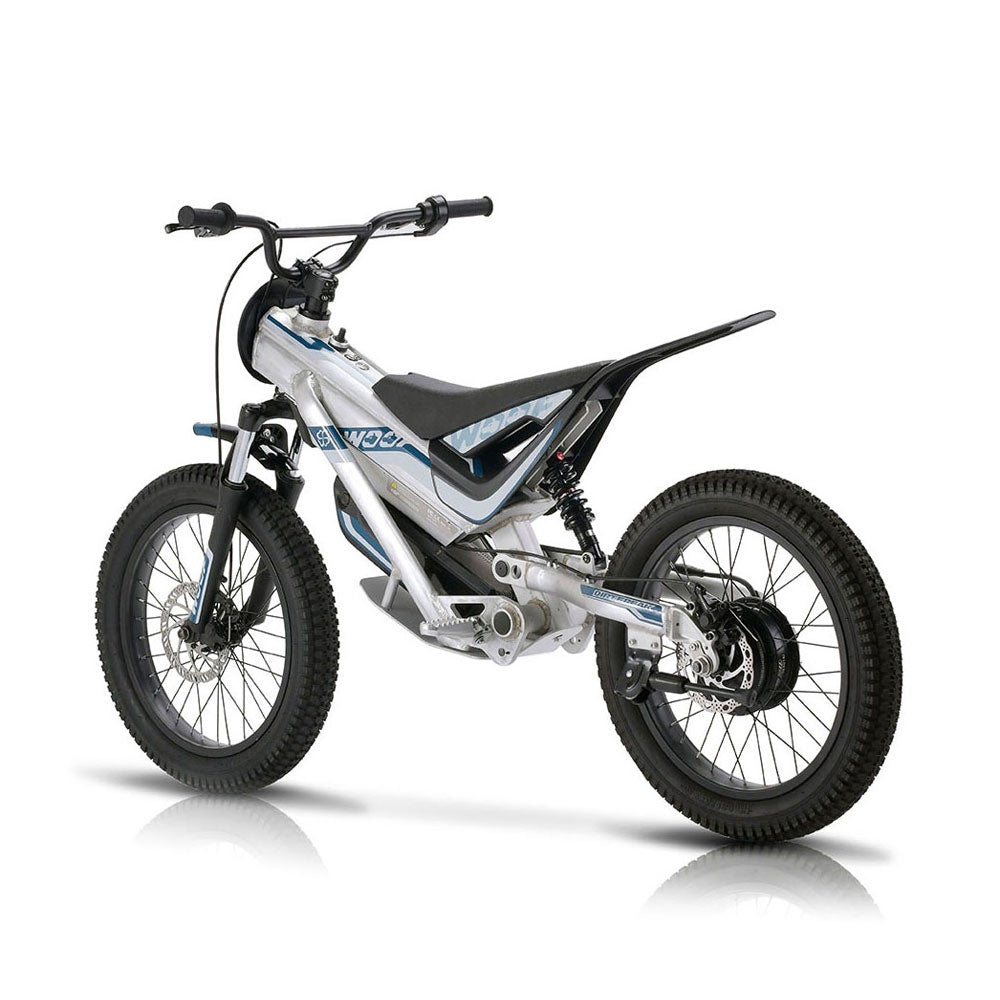

Yotsuba Moto WOOF 20

Let us play with greed.
A new species was born in YotsubaMoto. Its name is WOOF.
It features 48v750w (up to 1500w instantaneously), aluminium frame, front and rear suspension, and disc brakes for more authentic riding.

In addition, by changing the mounting position of the swingarm, it changes to two dimensions of motocross ? trial. We designed it so that you can experience many ways of playing with one unit.

WARNING:
Yotsuba Moto WOOF is competition type bikes. Do not ride on public roads. Ride and enjoy this bike at riding practice places or private propriety with parents.

FEATURES
VARIABLE DIMENSION

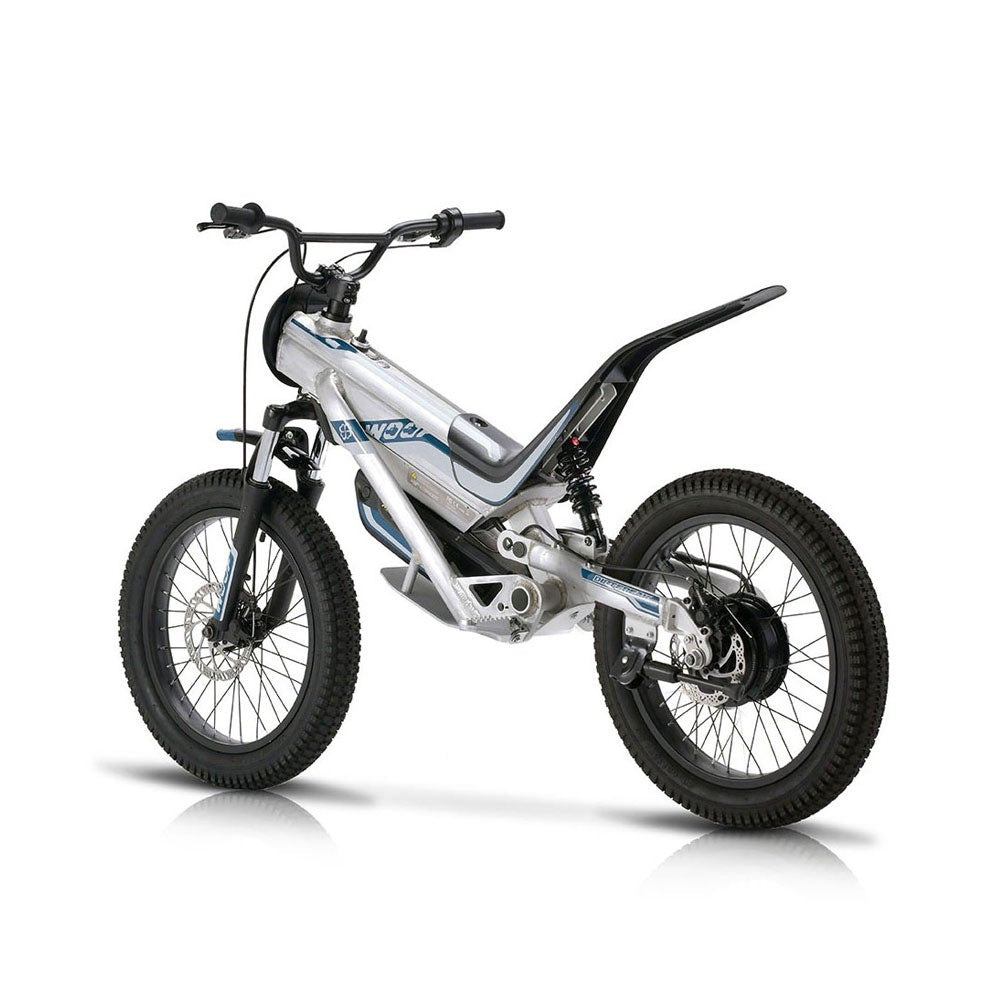

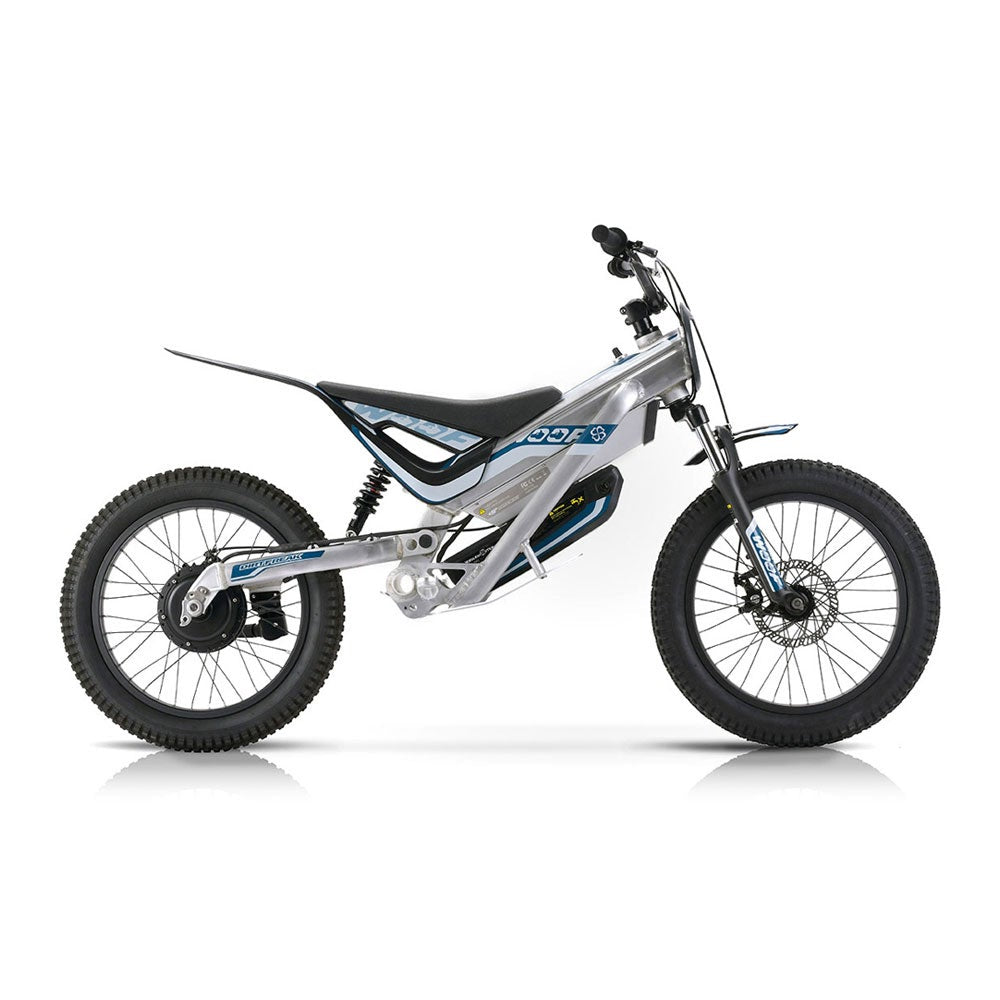

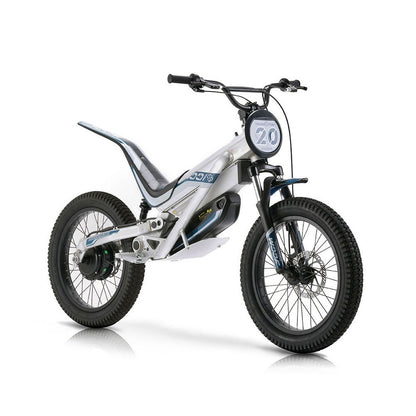

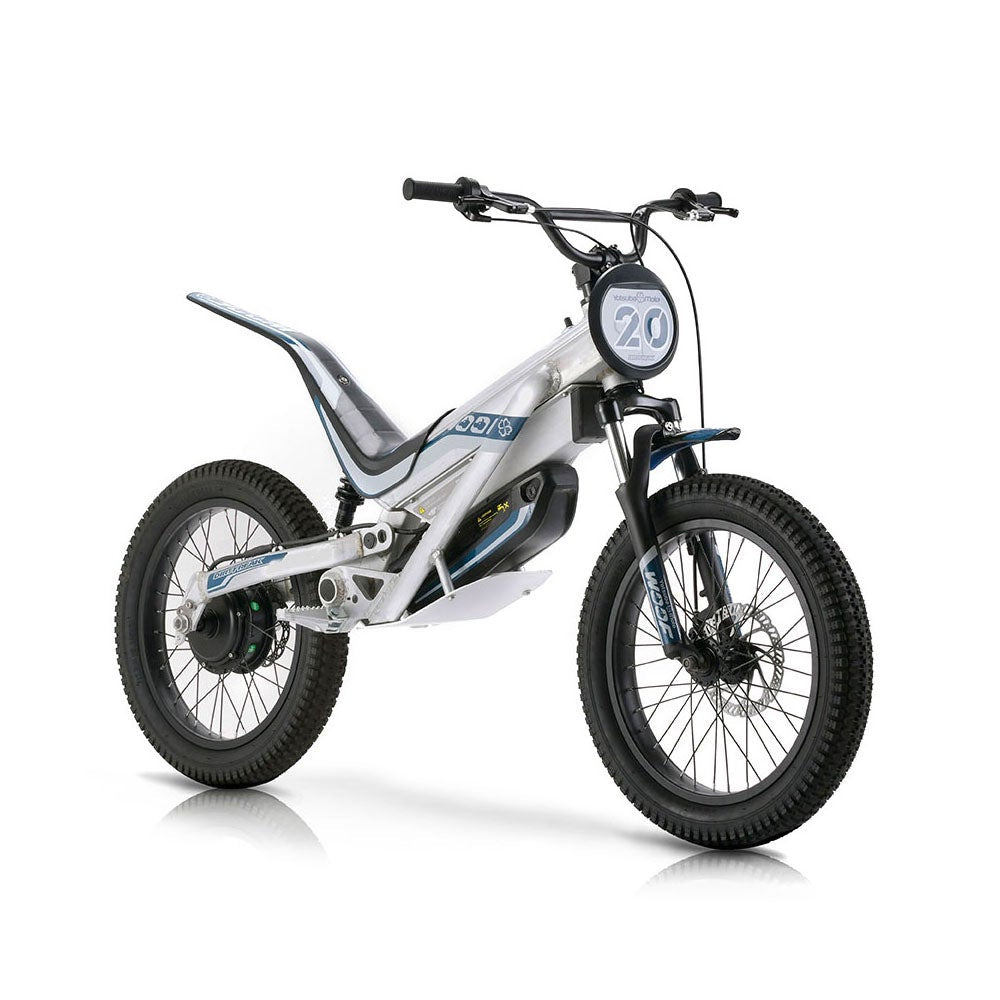

The main feature of the WOOF is that it can be reconfigured into off-road bike or trial bike dimensions by changing the mounting position of the swing arm and making the seat removable.
The wheelbase changes by about 40mm, and the caster angle changes by about 3 degrees. The foot peg can be set in two locations, and the ratio of front axle to foot peg: foot peg to rear axle can also be changed.
It only takes about 5 minutes to change the dimension, so you can easily change it according to the field you play in.

48V 750W MAXIMUM SPEED 40KM/H, 10AH LITHIUM BATTERY
The motor is an in-wheel type without chain or sprocket, as in Meow. Output is 48V 750W (rated)/1500W (instant maximum). The maximum speed on level ground is 40km/h for both WOOF16 and WOOF20. The battery has a capacity of 10Ah, which is enough for 2-3 hours of running time for children with moderate breaks. The continuous running time is about 50 minutes in the dry and about 45 minutes in the muddy conditions for a 60kg adult riding a 50cc mini-moto course. For riding in a trial park, a single battery is usually enough for a full day of fun.
The battery can be replaced quickly with the slide-in system.

POWER ADJUSTMENT DIAL AND MODE SWITCH
While the Meow had a 3-step power adjustment using a key, the WOOF has a dial-type stepless adjustment. When the power is turned down to the lowest level, the speed is about the same as the middle mode of Meow, so even first-time riders can ride with confidence.
In addition, the mode switch allows you to choose between acceleration-oriented mode (sunny mode) and traction-oriented mode (rainy mode). There is no change in the maximum speed or hill climbing ability when using either mode.
Like the Meow, it also has a gyro sensor to detect falls. (The Meow works at 45 degrees: the WOOF works at 65 degrees.

ALUMINUM BARE METAL FRAME
The frame is not painted or treated with an oxide coating. The user can polish and enjoy the texture of the aluminium material as it changes over time, but it needs to be polished or waxed regularly.

FRONT AND REAR SUSPENSION, DISC BRAKES
It is equipped with front and rear suspension and disc brakes with wire pull. Although a low-cost grade has been adopted to keep the price low, the bike uses general bicycle standards, making it easy for each end user to upgrade to the parts of their choice according to their needs. The stock brake levers are designed for small diameter handlebars, so if you want to use adult levers, you will need the "Adult Handlebar & Throttle Kit" or "Brake Spacer for 22.2mm".

WHEEL
Like the Meow, it uses bicycle-standard tires in order to reduce weight. The block pattern provides adequate grip for both on-road and off-road use. In order to secure air volume, we chose a larger size compared to bicycles of the same size. In particular, the 20-inch model uses a size commonly known as "19-inch," which is used for trial bicycles, to ensure a larger air volume.
The rim is blacked out to visually identify it with the tire and contribute to the power of the tire in the side view.

UNDERGUARD
To protect your precious battery, it is equipped with a sturdy underguard with a thickness of 3 mm. When climbing over rocks and logs, the shape has been devised so that even if you collide, the impact from the front will escape diagonally.

SPECIFICATIONS WOOF20
Length: 1650 mm (1570)
Width: 600 mm
Height: 925 mm (935)
Wheel base: 1095 mm (1060)
Lowest seat height: 610 mm (525)
Minimum under clearance: 215 mm (245)
Caster angle and trail: 26° (23°)
Frame: AL6061
Front work: AL6061
Front suspension: Telescopic
Rear suspension: Shock absorber monocoque
Front brake: Disc
Rear brake: Disc
Tire size: 20 x 2.5
Weight: 27 kg
Max speed Fast/Medium/Low: 40 km/h
Motor: Brushless hub motor
Battery: Lithium 48 V / 10 Ah
Rated output: 750 / 1500 W
Rated voltage: 48 V
Charging time: 3 hours
Running time Fast/Medium/Low: 30 / 60 / 100 min
Acceptable body weight: 55 kg
Proper age: from 9 years old
